Revolution Series
Wet Sounds Slogan
REV10 REV10

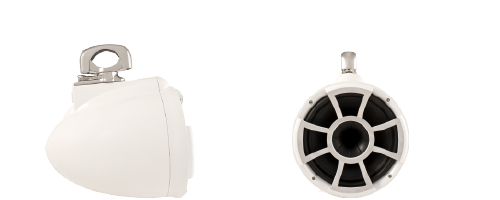

Revolution 10" EFG 4 ohm EFG™ HLCD Tower Speaker
The RevolutionSeries uses our proprietary REV TEC™ technology.  Unlike most conventional designs, REV TEC technology provides remarkable volume and amazing full range sound quality on axis and off axis at long distances. Extensive acoustic testing has confirmed these speakers ability to project volume at 80 feet and beyond without any loss of detail or information.  Not only does the Revolution series achieve volume and sound quality at a minimum of 80 ft, but with the REV TEC technology the rider can enjoy quality sound while riding outside the wake and being almost parallel to boat. Available with X Mount, Fixed Clamp or Swivel Clamp. Sold in pairs.


TC3 Swivel Clamp in Action
TC3 Flat Tower Animation   TC3 Flat Tower LED Animation   TC3 Tube Tower Animation   Call 1-877-938-7757

Features Technologies Specifications Warranty Accessories


Description Value Downloads (in PDF format)
Impedance: 4 ohms
PDF Revolution User Manual







RMS Watts: 300
PEAK Watts: 600
Frequency Response: 20Hz to 20KHZ
Sensitivity: 92 db at 1watt/1 meter
Mid Bass:

10 inch Kevlar reinforced EFG™ cone woofers with polyurethane surround.

High Frequency: Pro-Axial™ Driver - Coaxially mounted Titanium Diaphragm High Output

Size & Weight
Front-Back: 13" (330.20mm)
Hang Height 11 9/16" (293.68mm)
Width: 10 5/8" (269.87mm)
Hang Weight: 14.8 pounds / 6.71 kg each
Note: All specifications are for each REV10 enclosure
REV10 Dimensions
