SD4
SD4

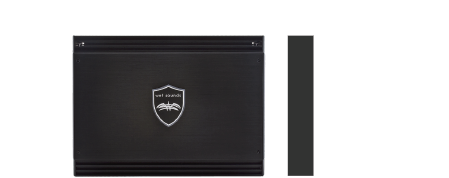

SD4: 4 Channel Amplifier

The Sinister  amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive Class D Power Supplies combined with Wet Sounds MAXED™ Power supply.  The MAXED power supply is a Patented technology designed to provide high efficiency levels never thought to be achievable in a mobile audio amplifier.  What this means to you.  Less current draw, less strain on the electrical system, less generated heat.  All this results in more play time!   The Sinister amplifiers share one size full cast aluminum chassis for all models making installation a breeze and the ability to have a clean install.


cart Buy Now

Features Technologies Specifications Warranty Configuration


Description Value Downloads (in PDF format)
Full Range Class D Amplifier
PDF User Manual







Output Power (RMS) @ 1% 1000Hz 14.4V CEA 2006
Stereo @ 4 Ohms 4 x 185 Watts @ 60A
Stereo @ 2 Ohms 4 x 340 Watts @ 123A
Mono @ 4 Ohms 2 x 685 Watts @ 122A
Frequency Response 3dB - 8 Hz - 35 kHz
Crossover Range High and Low Pass 30Hz - 300Hz 12dB/Octave
Bass Boost 0-12.5dB @ 27Hz - 110Hz
S/N Ratio (A wtg) >90dB >113dB
Input Sensitivity Low Level 0.2V - 6.1V
Remote Level Range 0 db to -61 db
15.6V Overvolt Protection
